DOTHANH IZ350L Plus
Model:
Dothanh IZ
Origin:
CKD
Weight:
1.9 T - 3.5 T
Listed price:
Contact
Information
DOTHANH IZ350L Plus
Total load
6.5 T
Weight
1.9 T - 3.5 T
Engine power
106/3.400
(PS/rpm)
(PS/rpm)
The standard long
3.360 mm

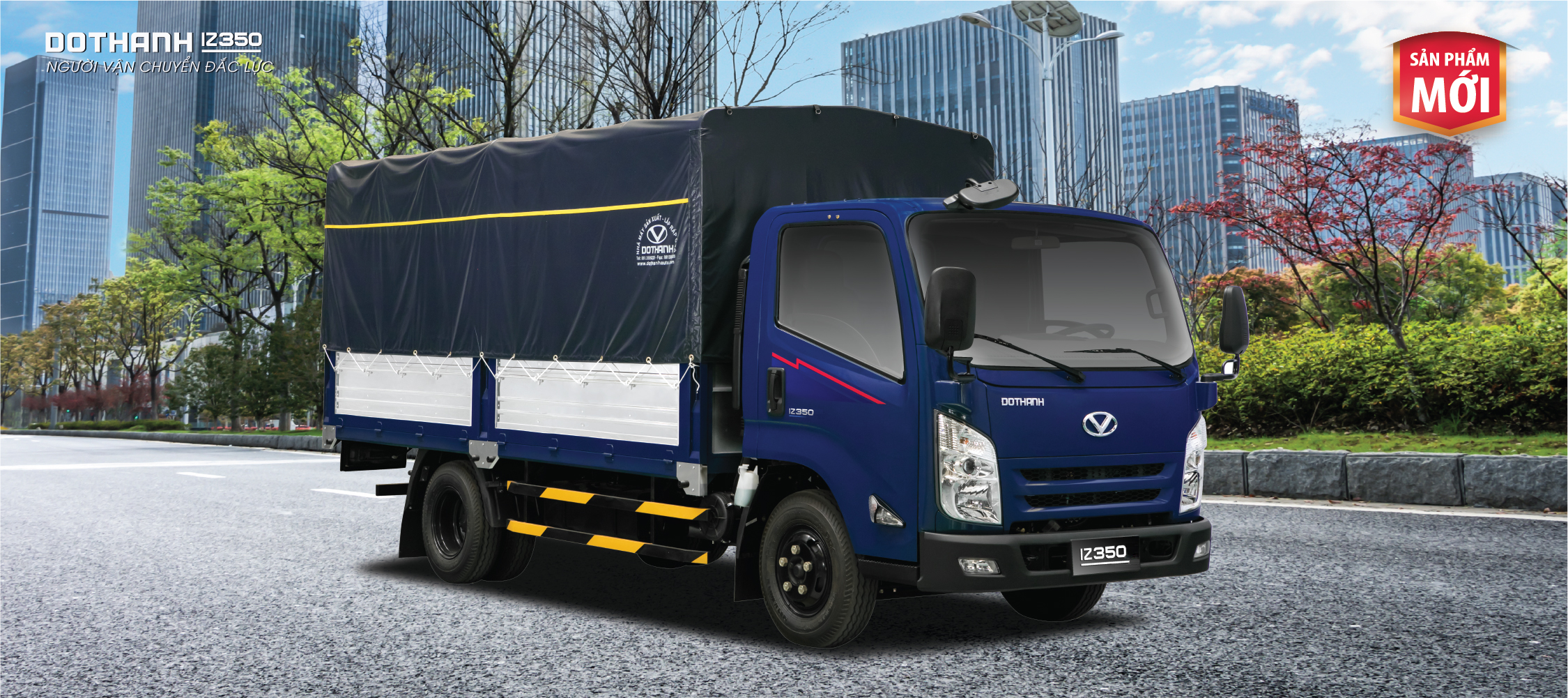

DOTHANH IZ350 is a truck version developed based on groundbreaking research and assembled on a technology transfer line from Japan. The JX493ZLQ4 engine delivers extremely powerful and stable operating performance, meeting almost every daily load needs of customers. The emissions treatment system meets Euro IV standards that are more environmentally friendly and fuel efficient. Integrating deep refrigeration air conditioning system and standard entertainment facilities on the car to help drivers have a comfortable and pleasant experience on the journey.
Exterior

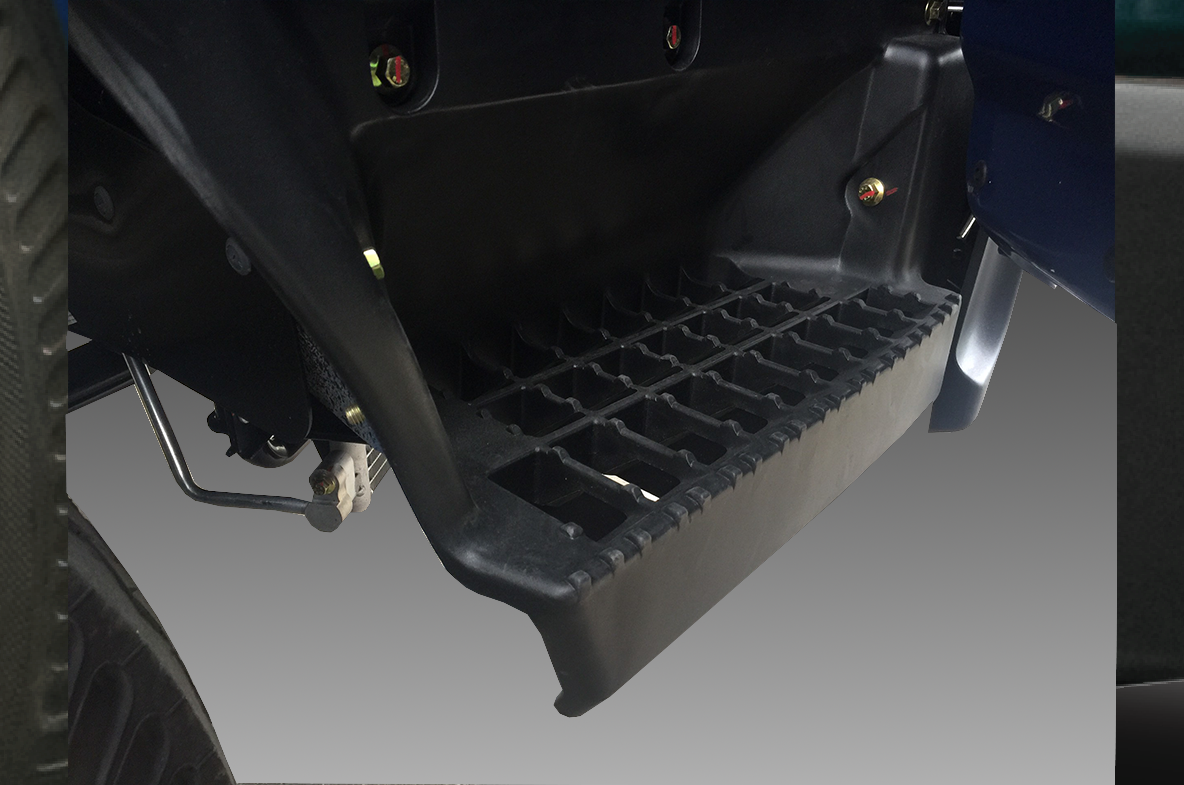

Convenient up and down steps

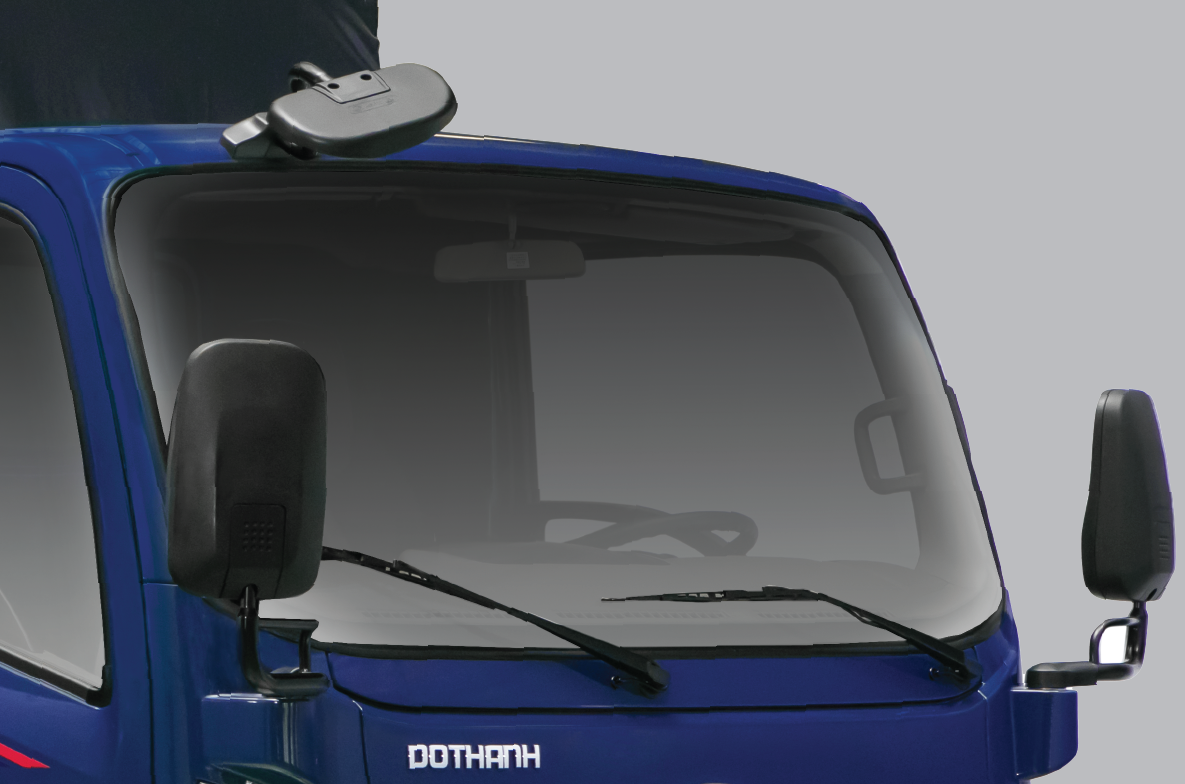

Rearview mirror integrated sphere mirror

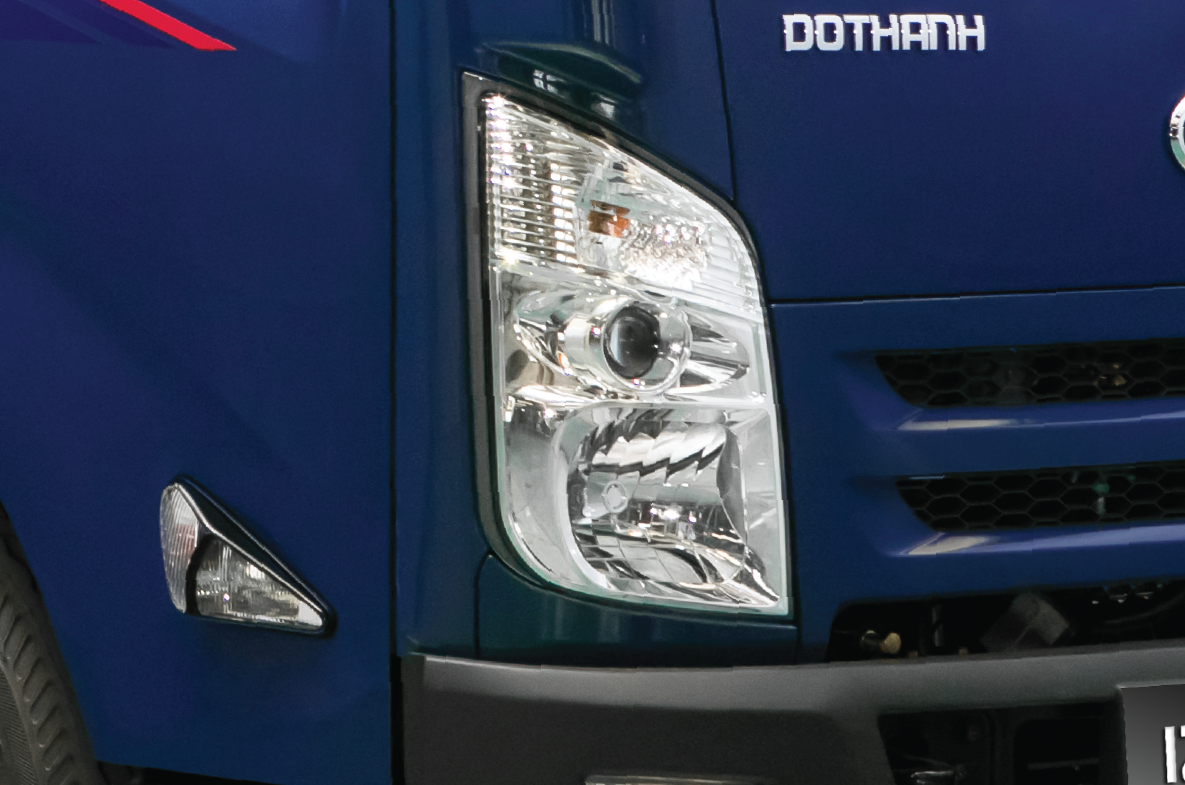

Halogen headlight cluster can adjust beam height

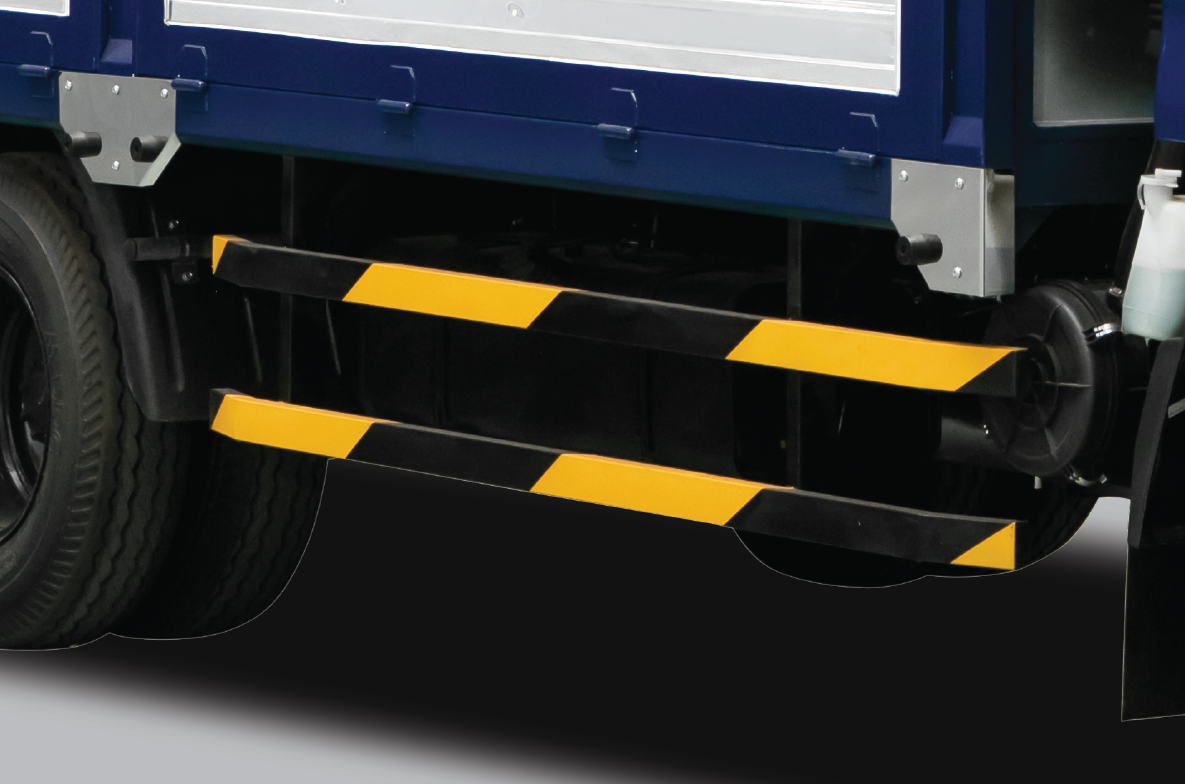

Truck side bumper

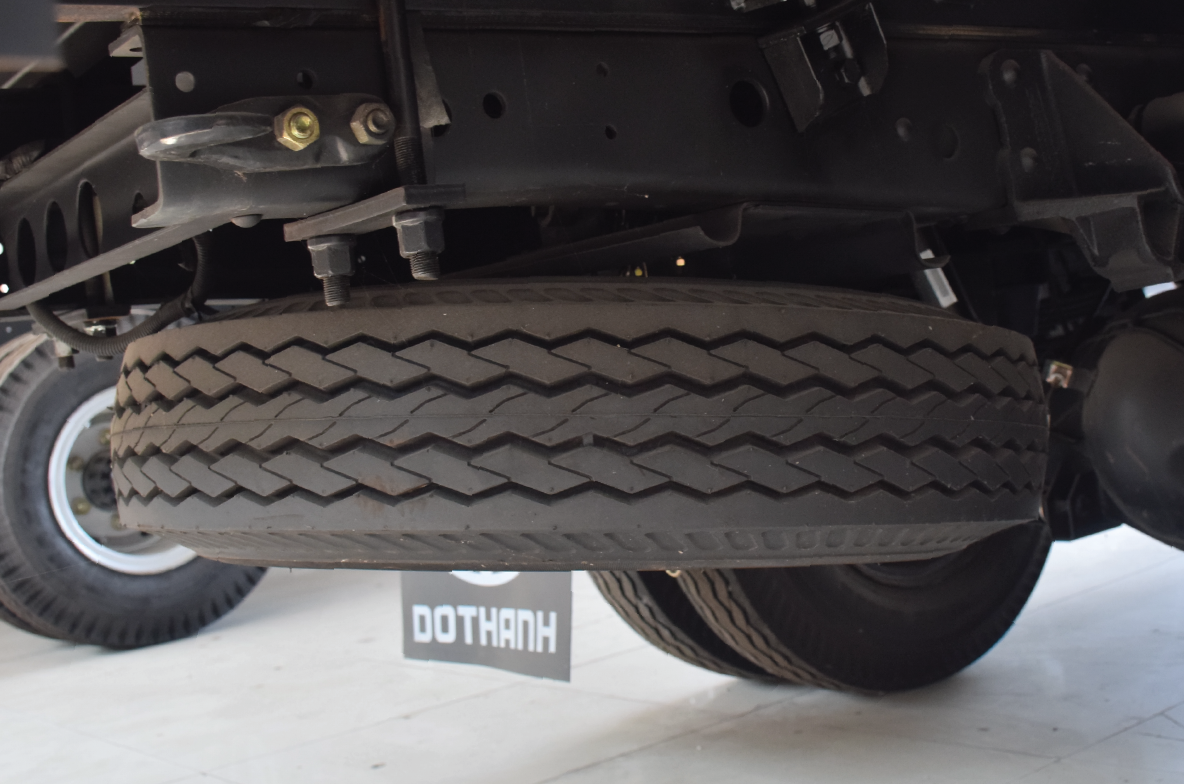

Spare Tire 7.00 - 16 / 4x2

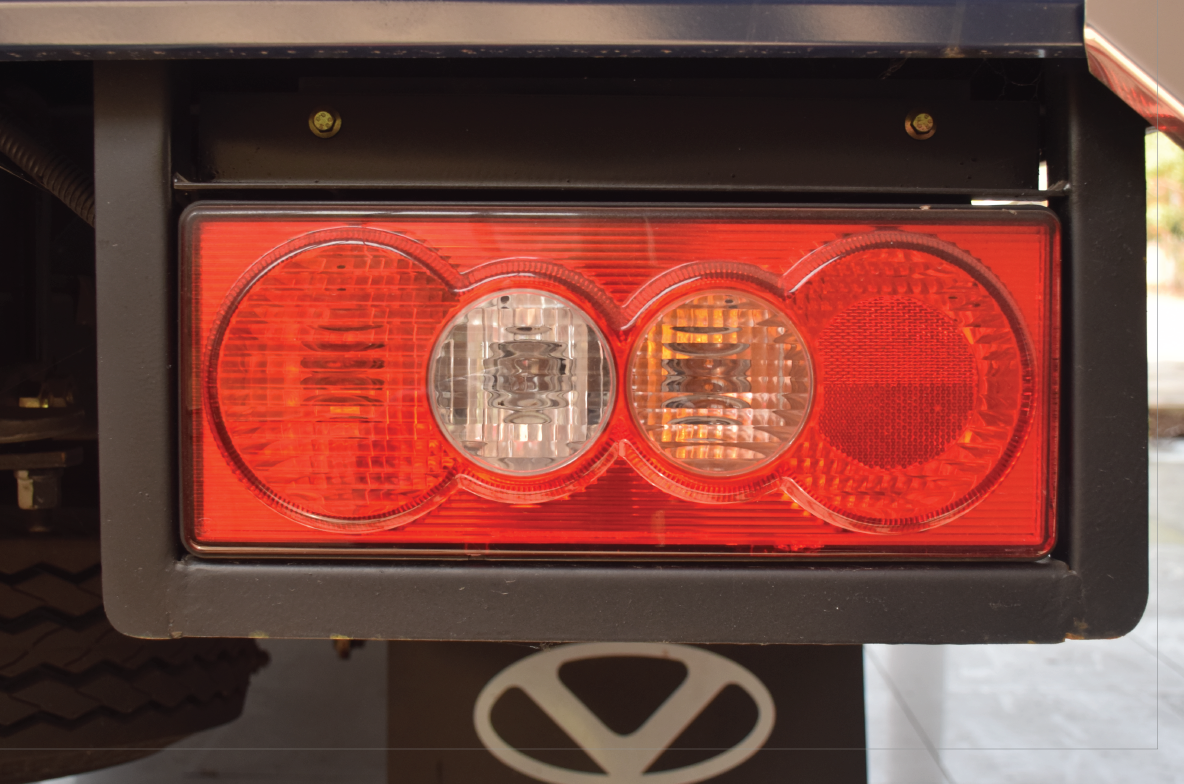

Tail Light

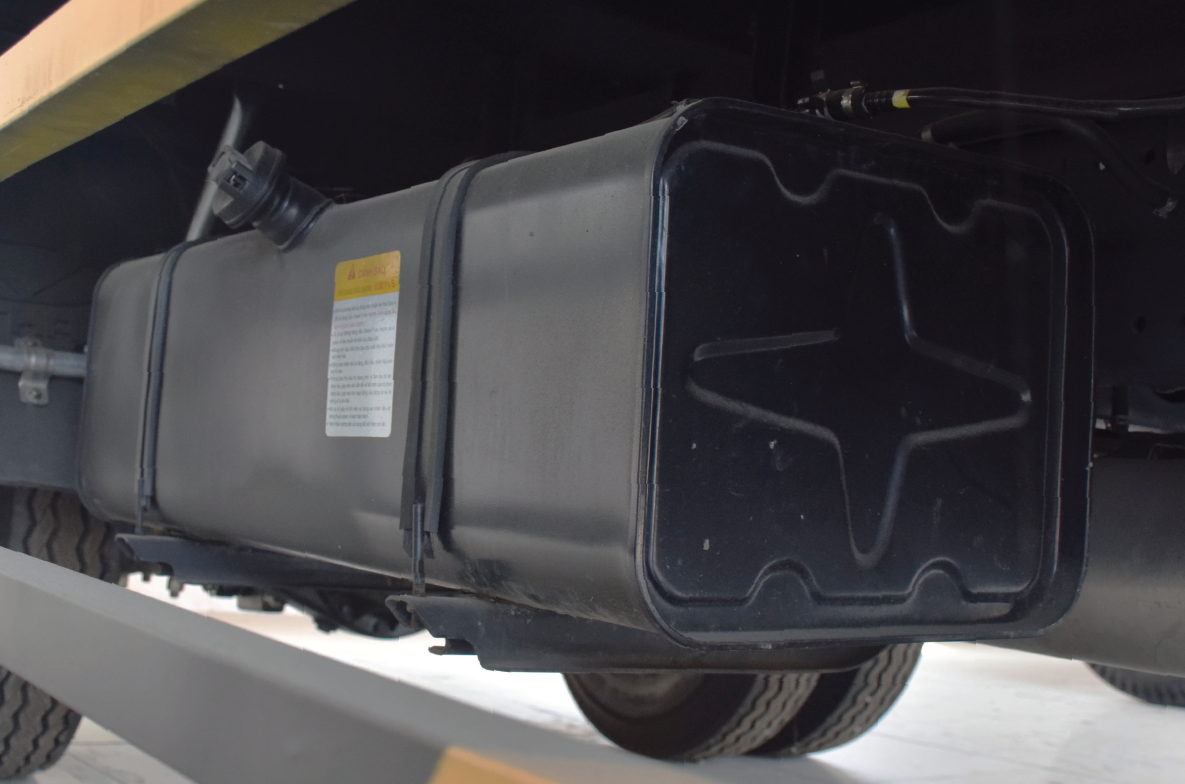

Fuel Tank

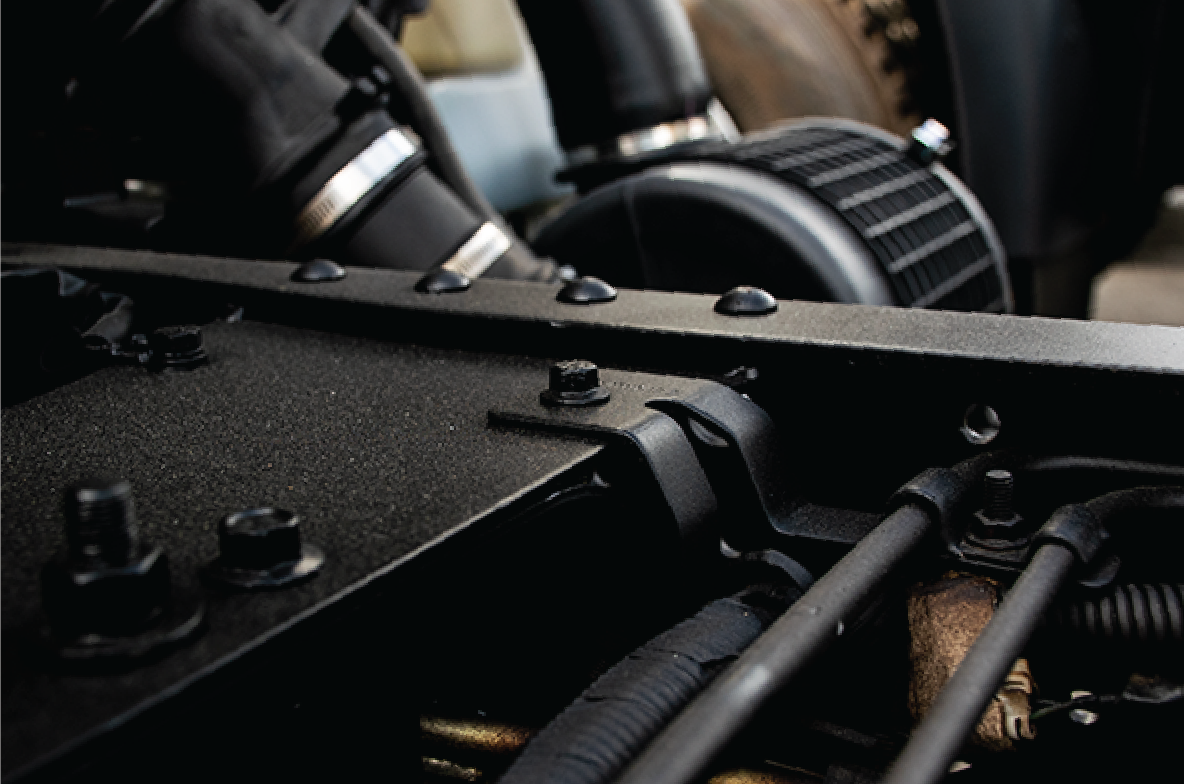

Chassis is sprayed with 1 layer of anti-rust
Furniture

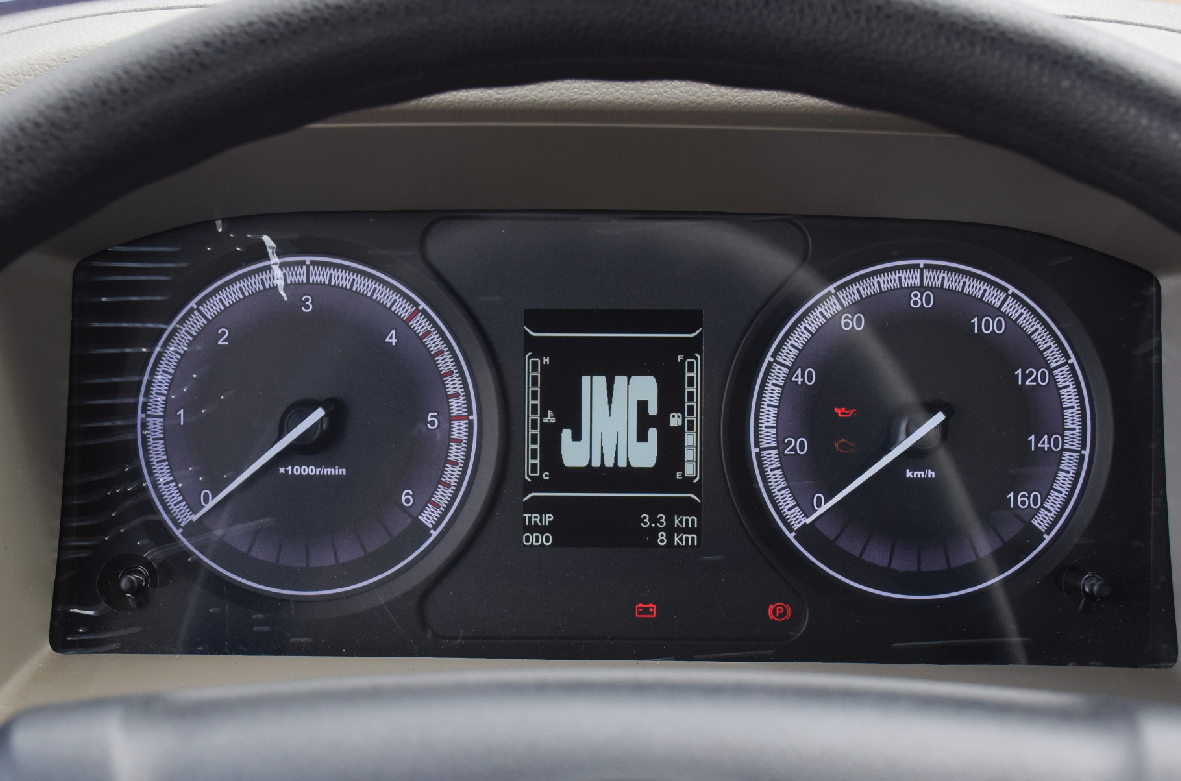

Display Screen

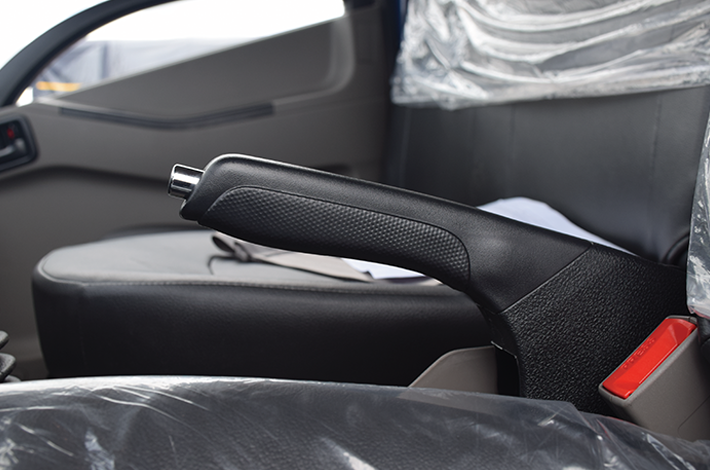

Handbrake

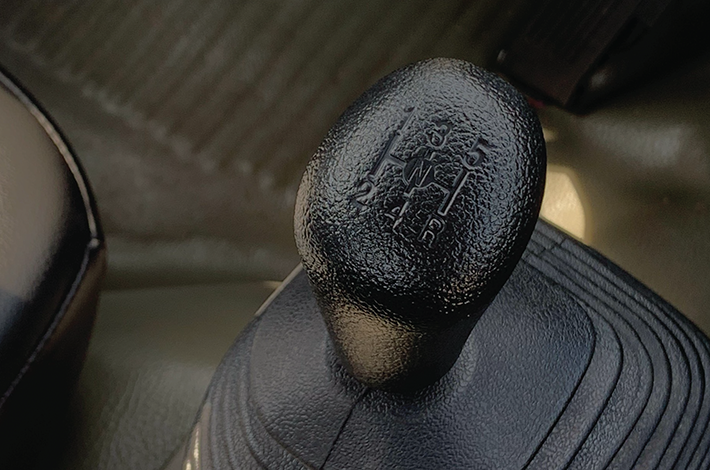

Gear lever for 5 forward and 1 reverse gears

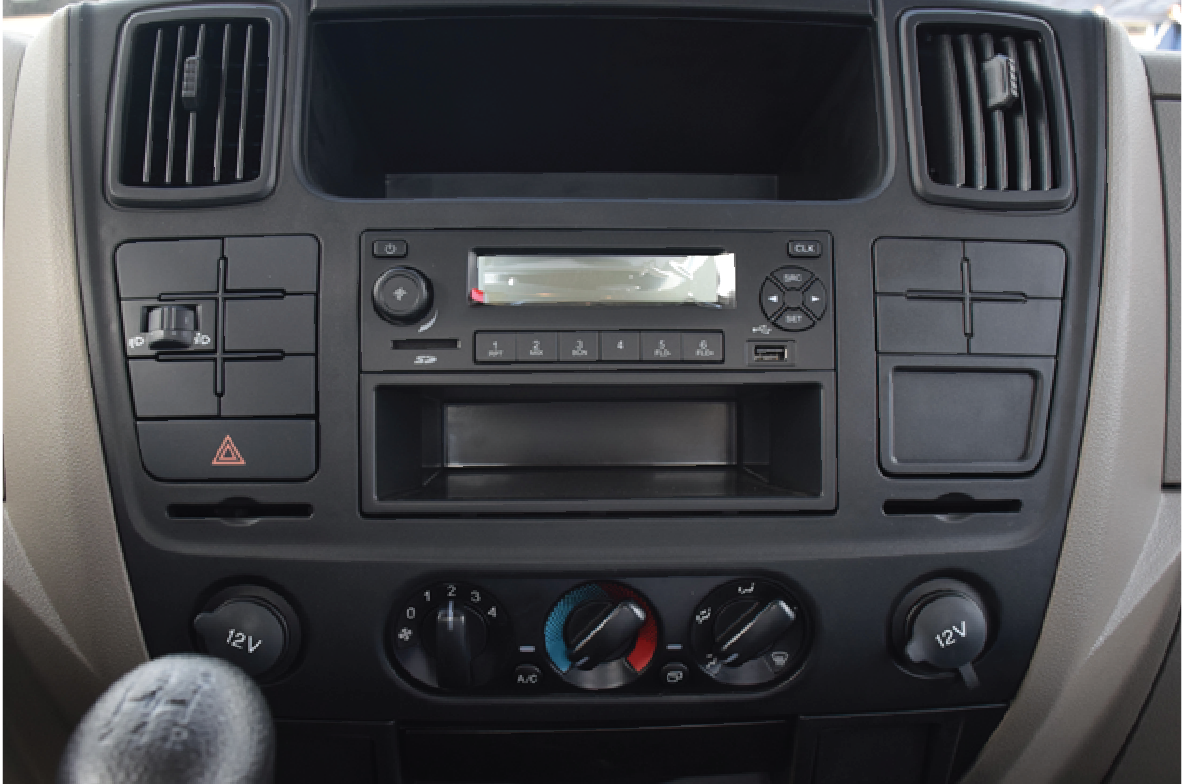

Entertainment system, Modern control cluster, USB reading slot, Memory card and Radio

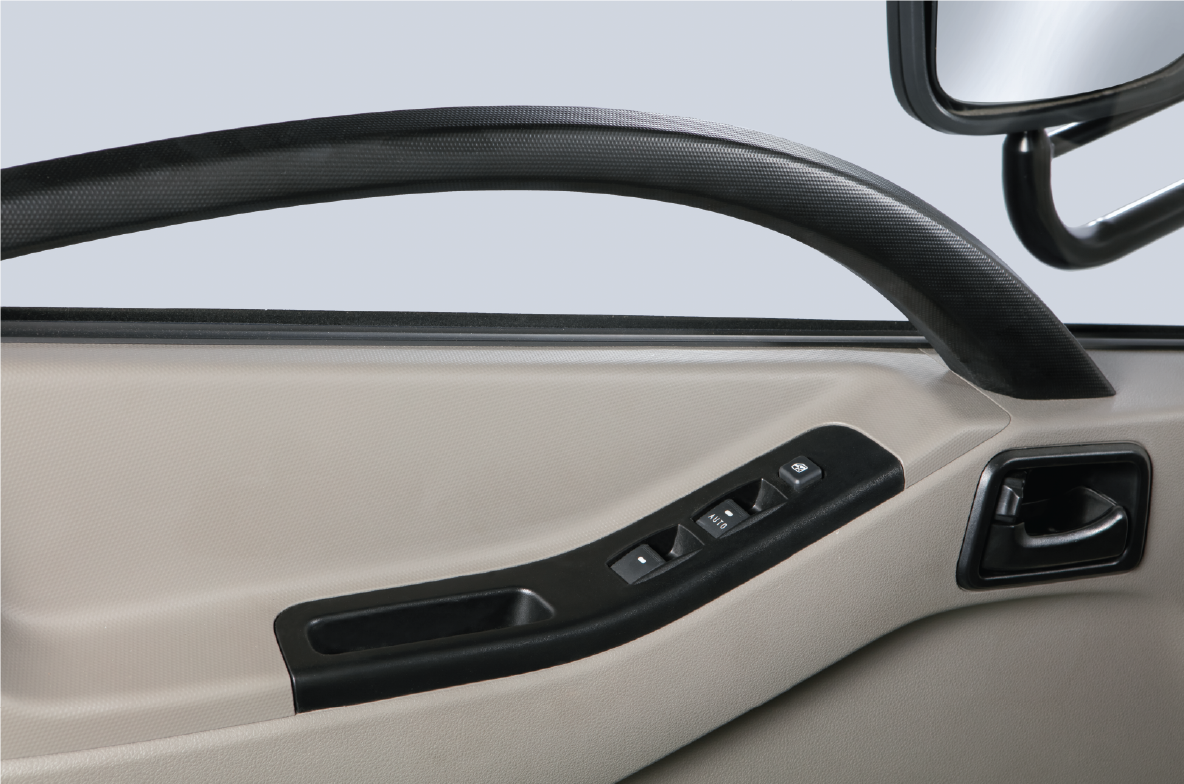

Convenient electric glass, with glass lock button

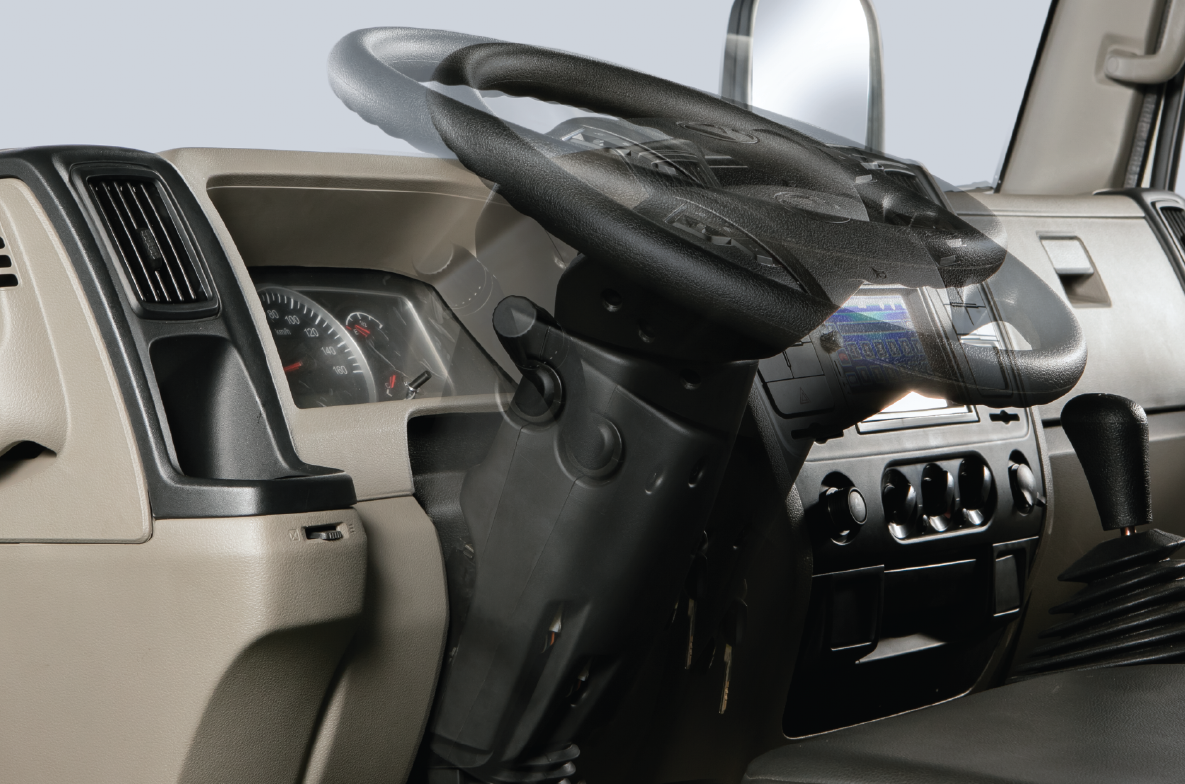

Nodding steering wheel, integrated audio controls

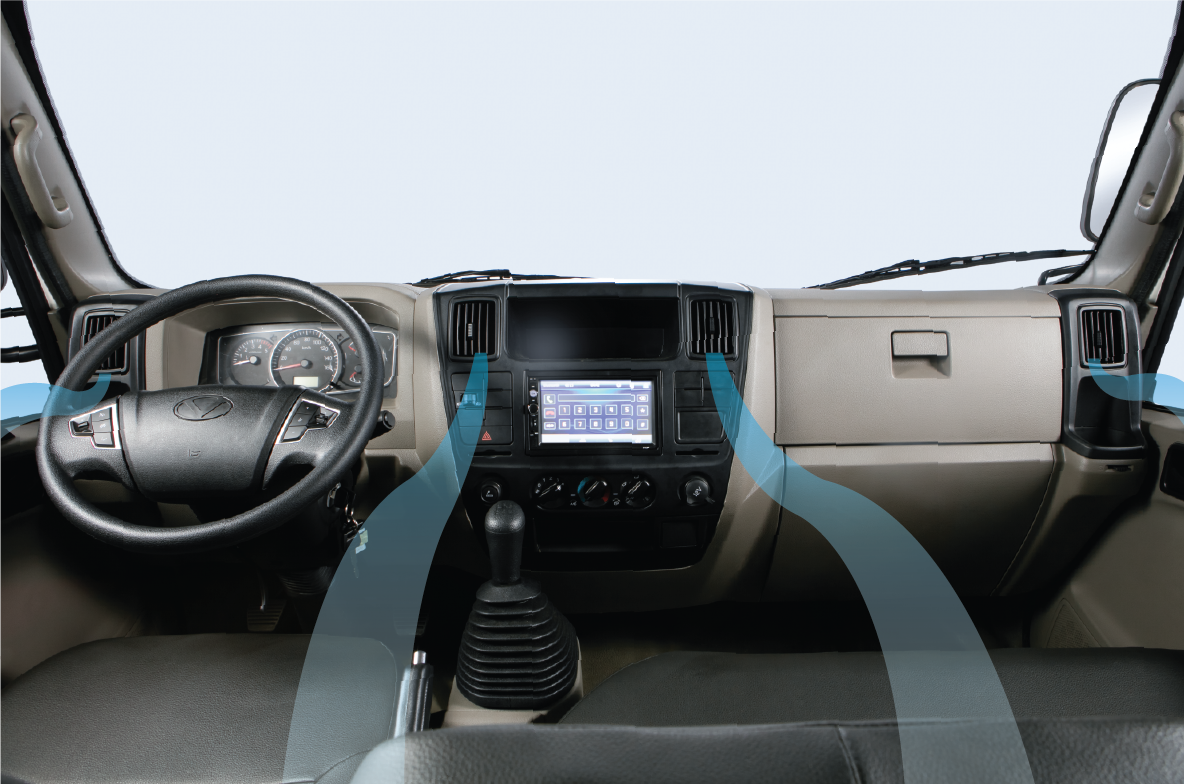

Air conditioning system
Efficiency

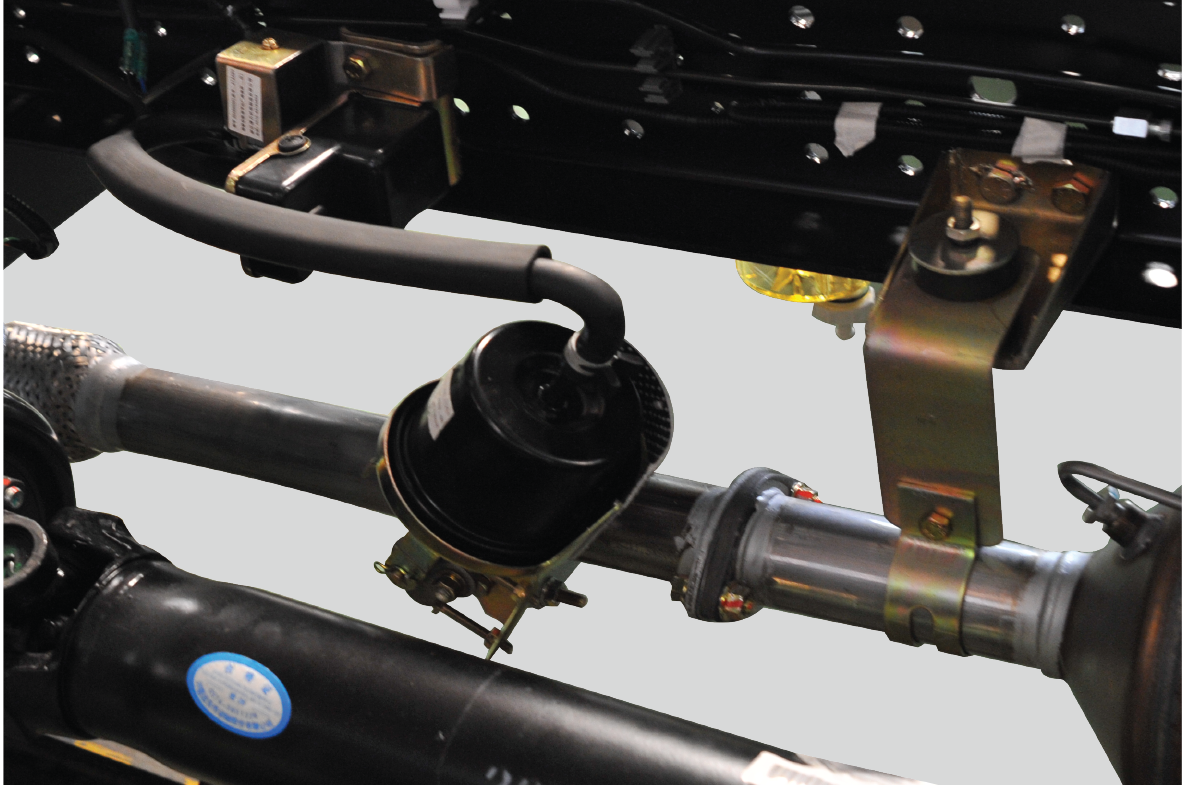

Exhaust Brake
Euro 4 emissions standards, TCI technology.

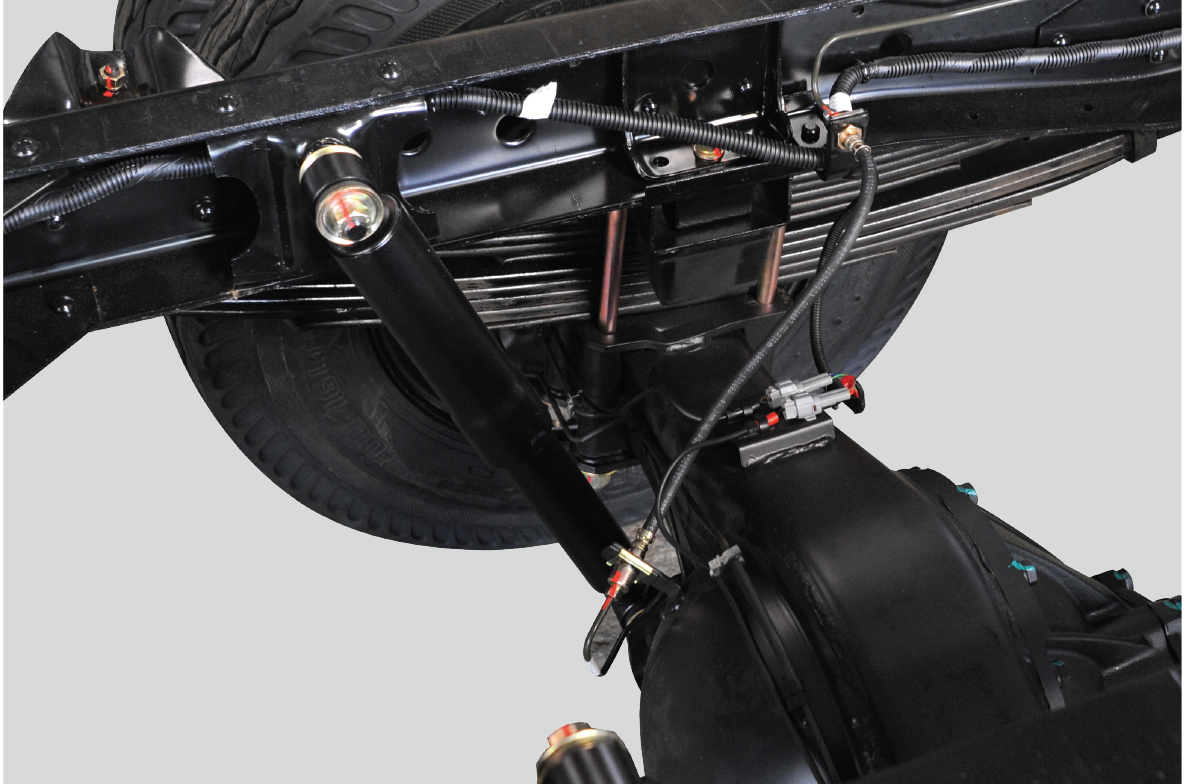

Advanced suspension increases the smoothness of use

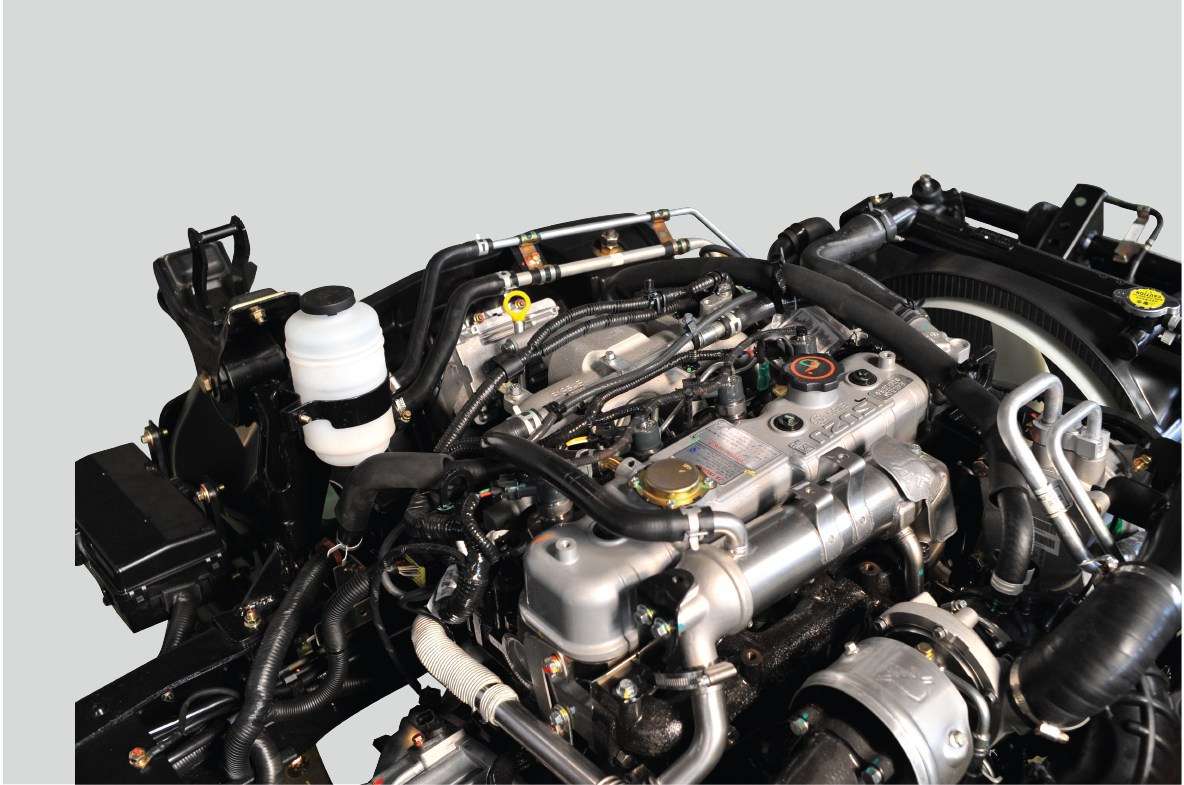

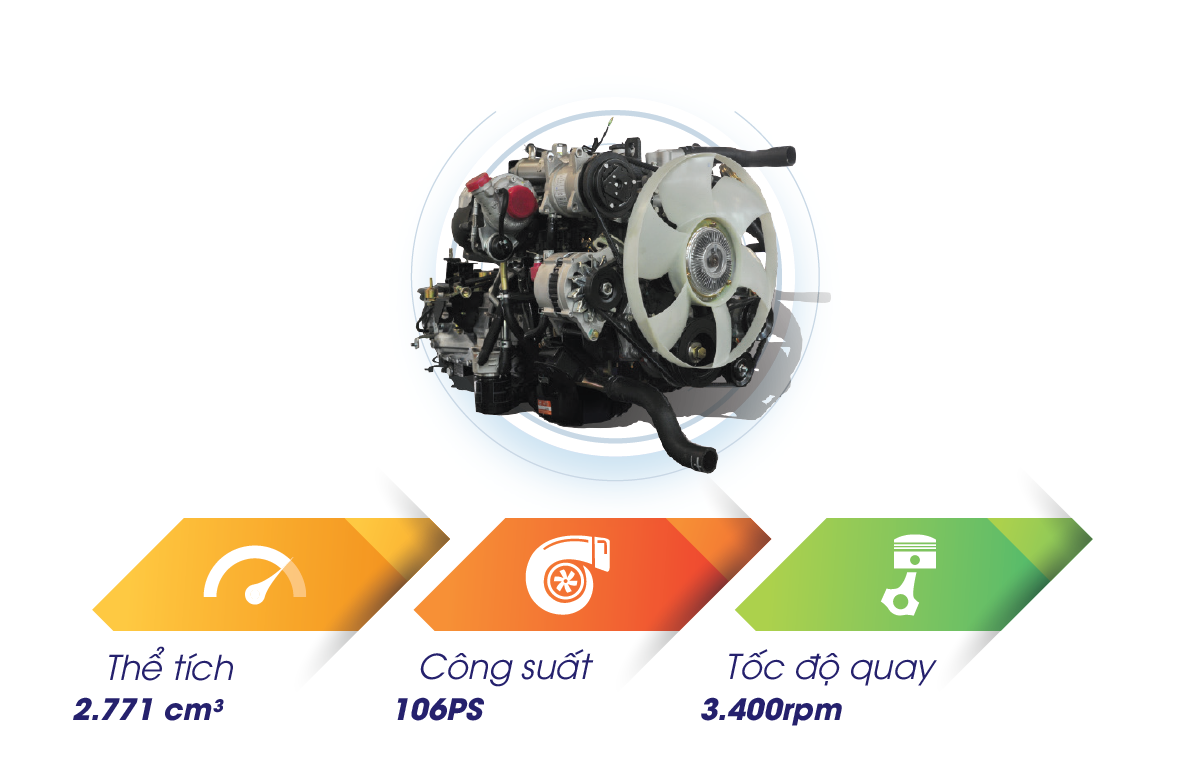

Durable and strong JX493ZLQ4 Engine, Max power: 106PS/3.400rpm; Max torque: 260N.m/2.000rpm; Displacement: 2.771cc
Technical specifications
| MODEL | IZ350/TMB - 3.5T | IZ350/TMB - 2.5T | IZ350/TMB - 1.9T | |
| WEIGHT (kg) | ||||
| Gross Vehicles | 6.500 | 4.990 | 4.850 | |
| Pay load | 3.490 | 2.150 | 1.990 | |
| Curb weight | 2.815 | 2.645 | 2.665 | |
| Seating | 3 | |||
| Fuel tank (L) | 80 | |||
| DIMENSION (mm) | ||||
| Overall (LxWxH) | 6.195 x 2.080 x 2.885 | 6.195 x 2.080 x 2.885 | 6.195 x 2.080 x 2.885 | |
| Dimensions of inner cargo body (LxWxH) | 4.310 x 1.940 x 660/1.850 | 4.310 x 1.940 x 660/1.850 | 4.310 x 1.940 x 660/1.850 | |
| Wheel base | 3.360 | |||
| Front axle wheelbase | 1.560 | |||
| Rear axle wheelbase | 1.508 | |||
| Ground clearance | 190 | |||
| ENGINE - TRANSMISSION | ||||
| Model | JX493ZLQ4 EURO IV | |||
| Type | Diesel, 4 stroke, 4 cylinders in line, common rail direct injection, turbocharged, water-cooled | |||
| Displacement (cc) | 2.771 | |||
| Max power (PS/rpm) | 106/3.400 | |||
| Max torque (N.m/rpm) | 260/2.000 | |||
| Transmission | JC528T8, mechanical, 5 forward gear + 1 reverse gear | |||
| BRAKE SYSTEM | ||||
| Brake | Drum brake, Hydraulic. dual circuit with air assisted | |||
| Parking Brake | Mechanicel, internal expanding acting on the transmission output shaft | |||
| Auxiliary Brake | Exhaust Brake, ABS | |||
| OTHER SYSTEM | ||||
| Clutch | Dry single plate, Hydraulic control with air assisted | |||
| Steering system | Recirculating Ball With Integral Power Assisted By Oil | |||
| Suspension | Dependent, semi-elliptical leaf spring, hydraulic shock absorber | |||
| Generator | 14V-110A | |||
| Battery | 12V-90Ah | |||
| Tire size/Wheels formula | 7.00-16/4x2R | |||
| PERFORMANCE | ||||
| Max gradability (%) | 26,12 | 35,2 | 36,3 | |
| Max speed (km/h) | 83 | 89 | 89 | |
| Smallest rotation radius (m) | 6,2 | |||
** Dothanh Auto reserves the right to change specifications without prior notice.
