DAEWOO NOVUS CL4T8
Model:
CL4T8
Origin:
CBU
Weight:
39 T
Listed price:
Contact
Information
DAEWOO NOVUS CL4T8
Total load
61.270 Kg
Weight
39 T
Engine power
440 Ps
The standard long
4.650 mm

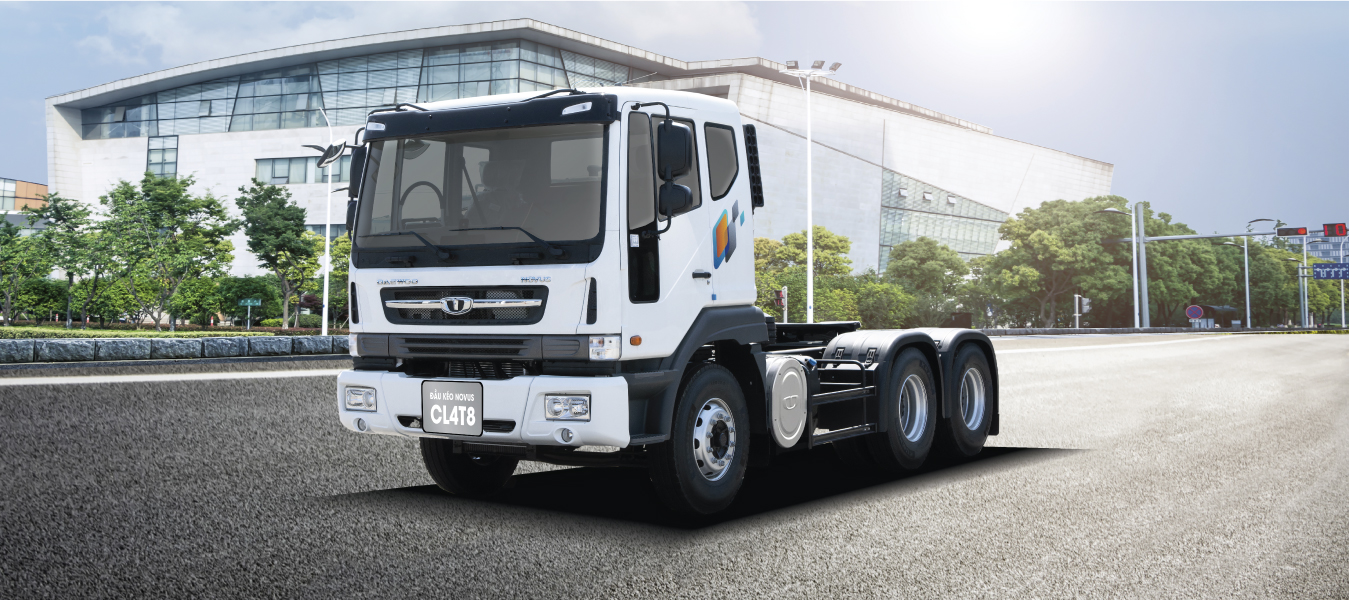

DAEWOO NOVUS CL4T8 (TRACTOR CL4T8) is a tractor version imported completely from Daewoo Trucks in Korea. Affirming the leading class in the segment with the powerful Doosan DX12E engine, reaching a maximum capacity of up to 440PS/1,900rpm. Applying SCR emission treatment technology to Euro V standards to save fuel and be more environmentally friendly. The interior - exterior is designed with strong and luxurious lines, integrated with high-class facilities according to the car to give users a sense of excitement and great experience in every journey.
Exterior
Side-view-Mirror

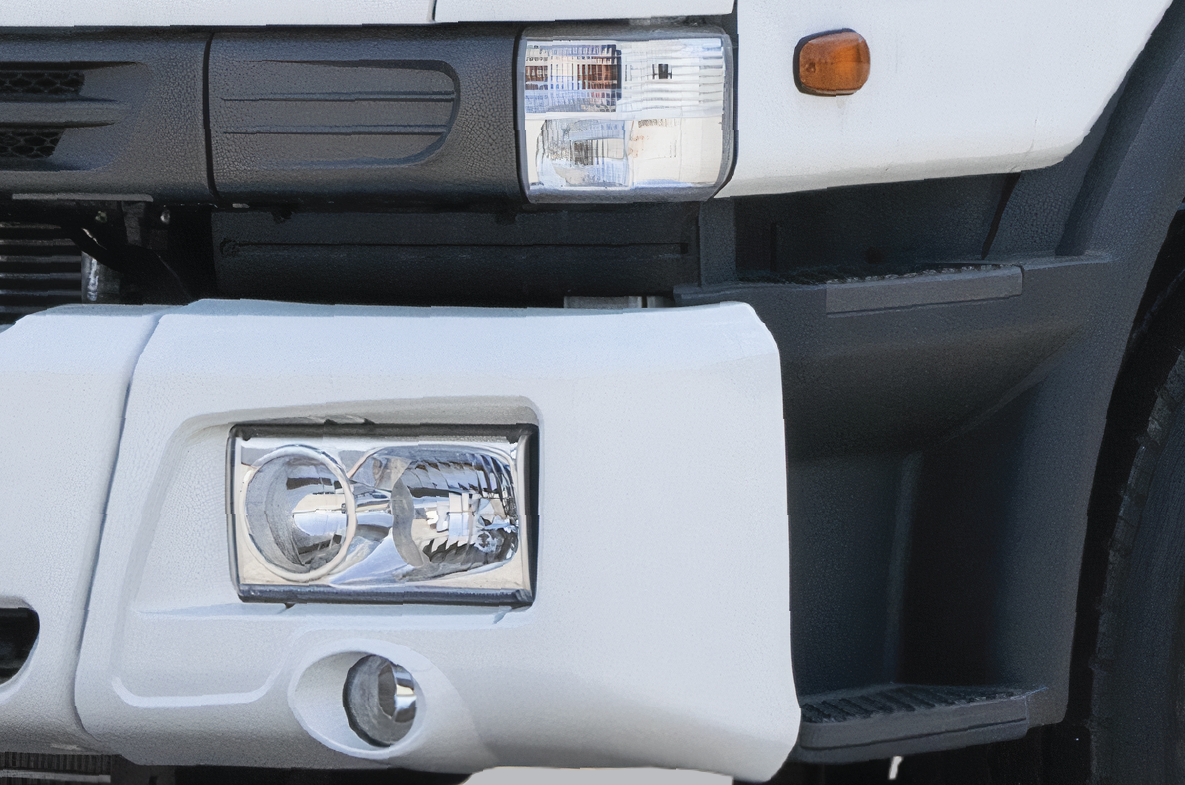

The front light cluster is equipped with size lamps
Convenient up and down steps

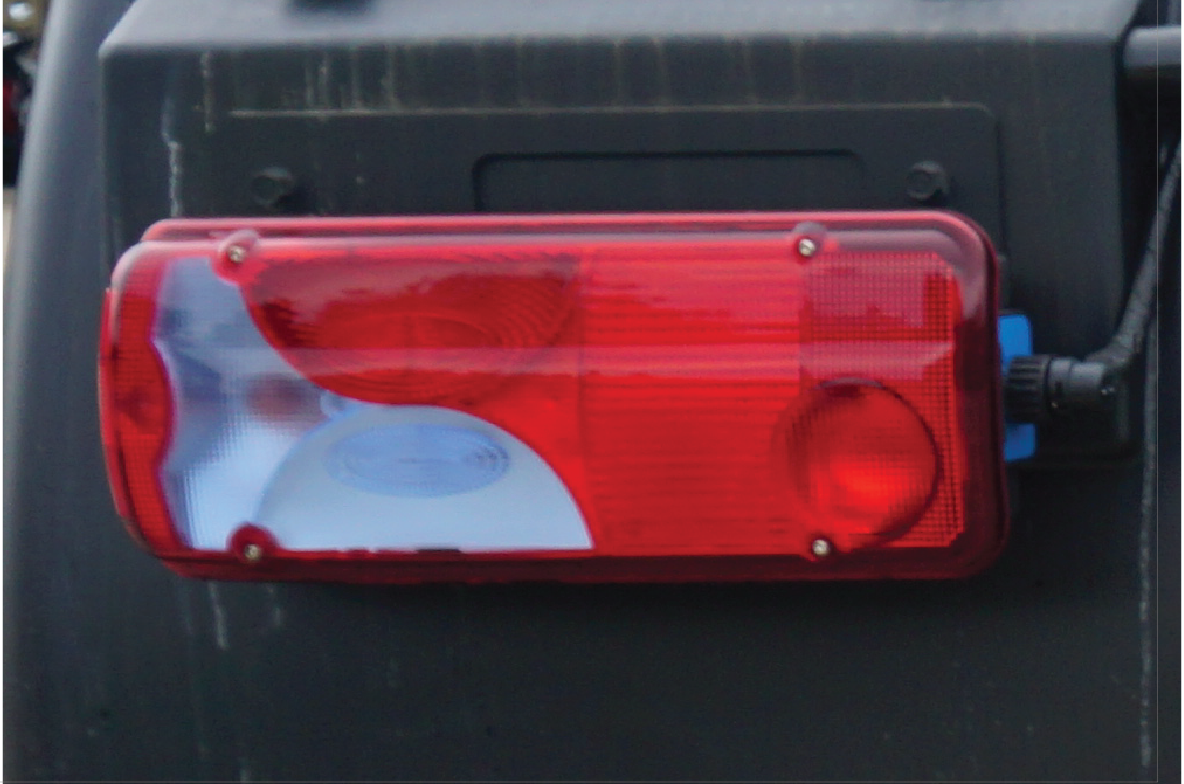

Tail light

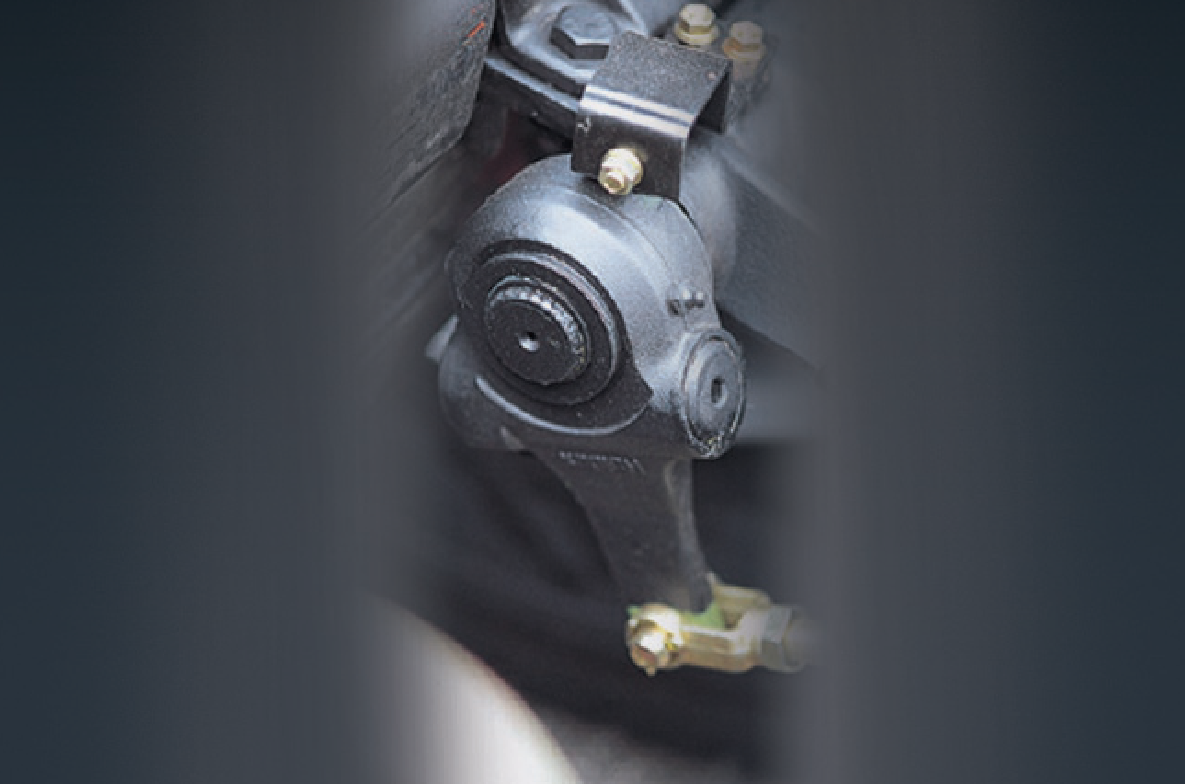

Automatic Adjust Brake (Option)

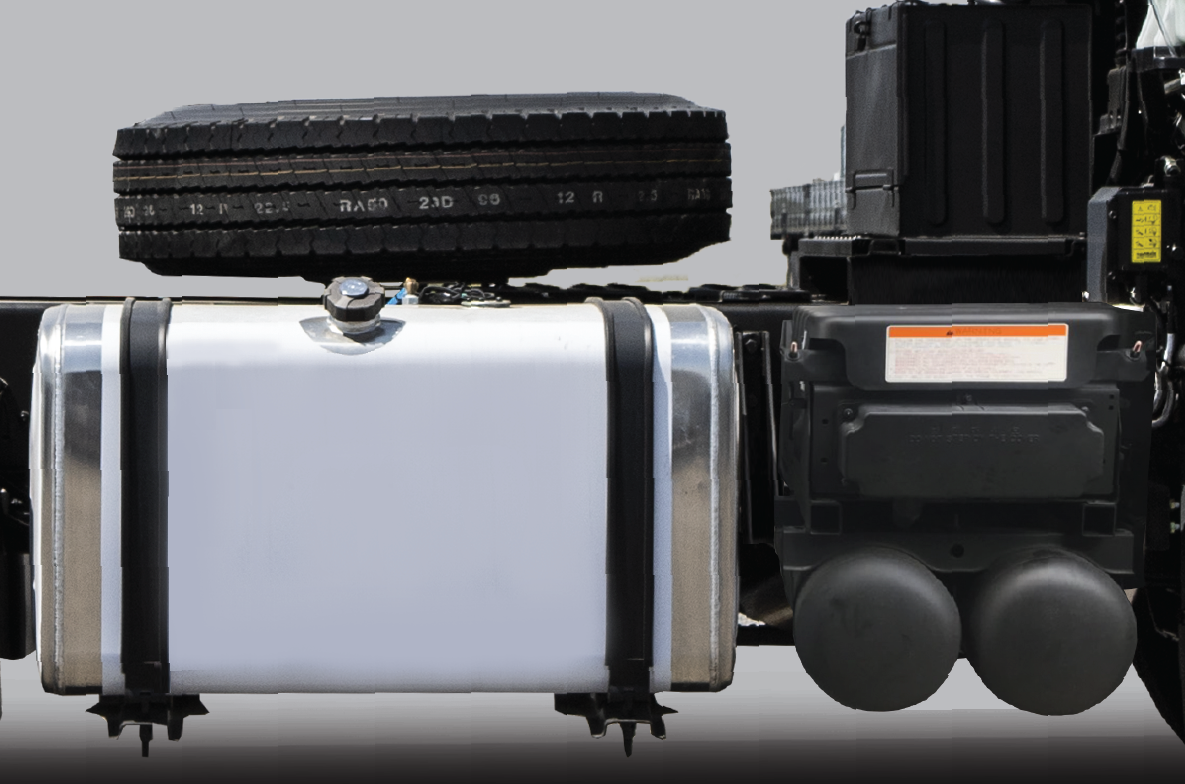

Battery, Fuel Tank, Pneumatic Tank and Spare Tire

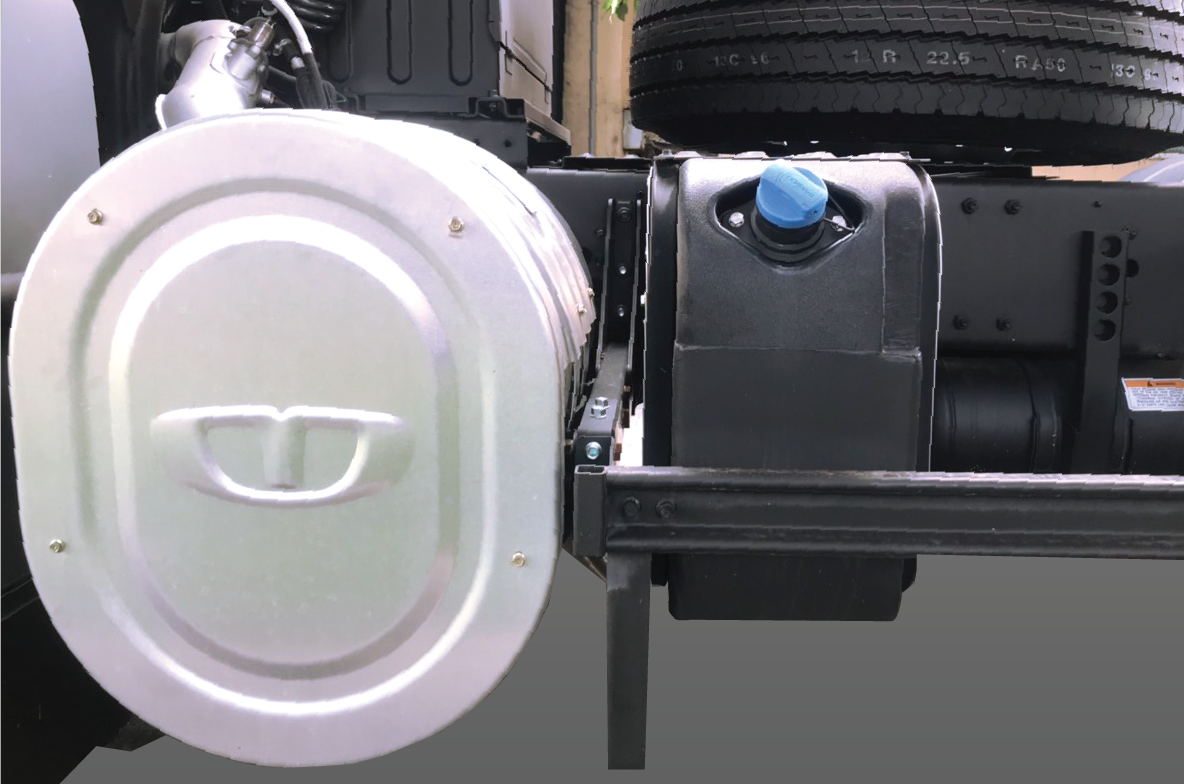

Air filter and urea container on the side of the car
Furniture

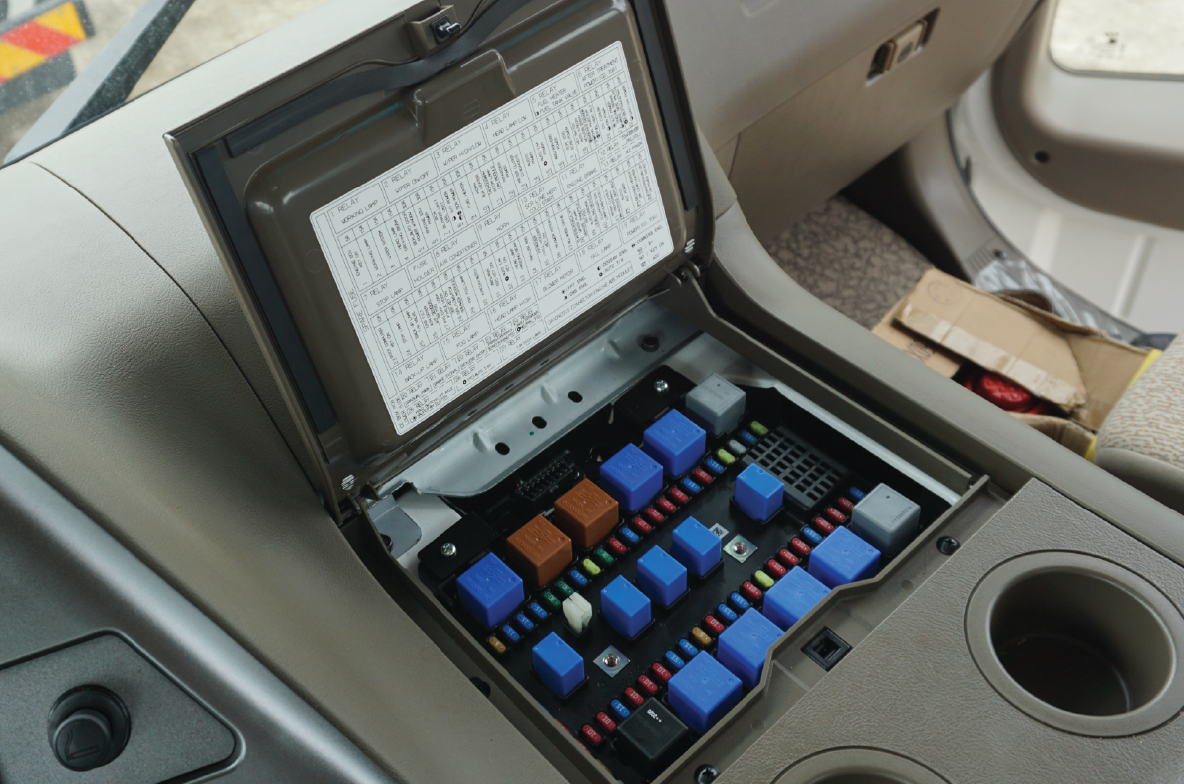

Fuse box

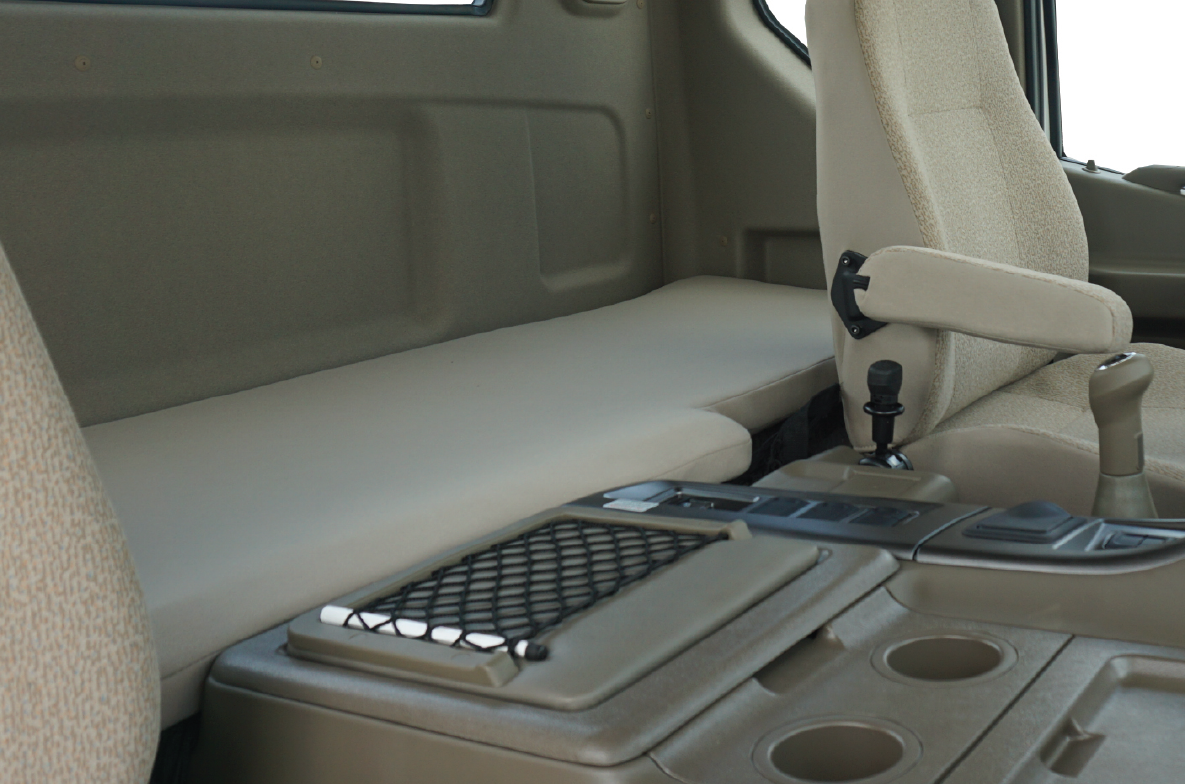

Large bed

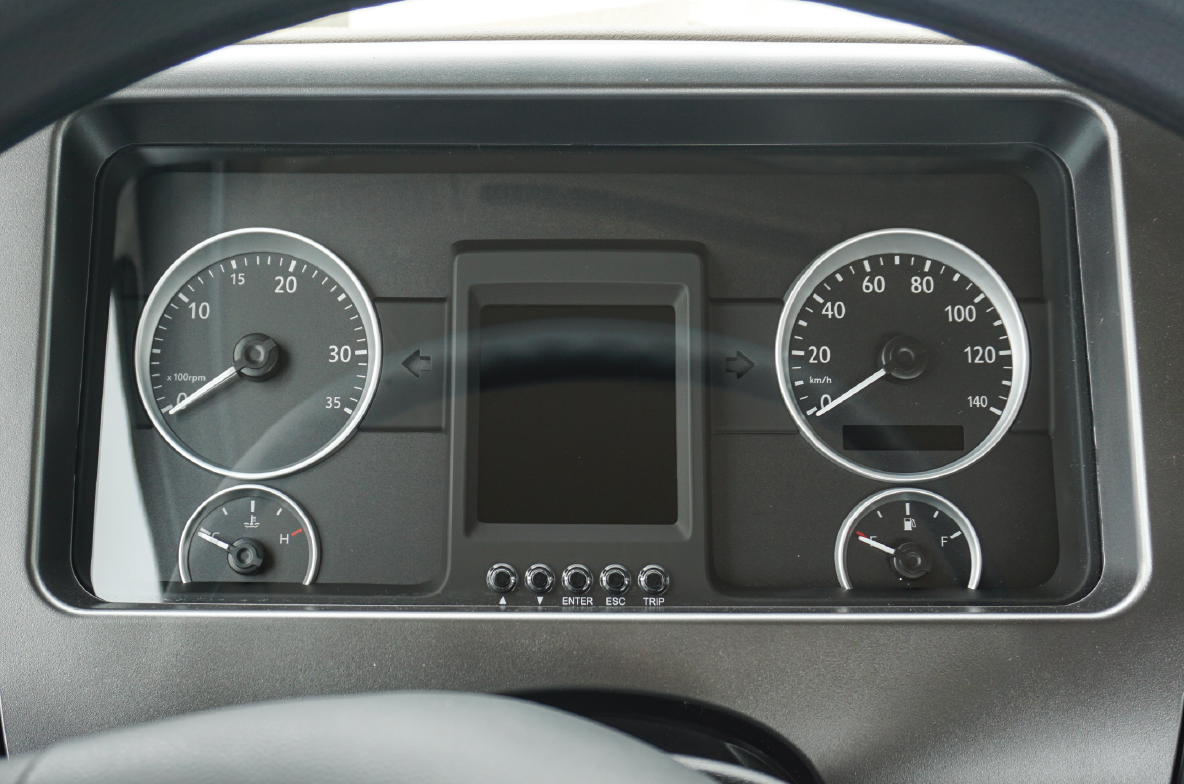

Screen displays vehicle route information

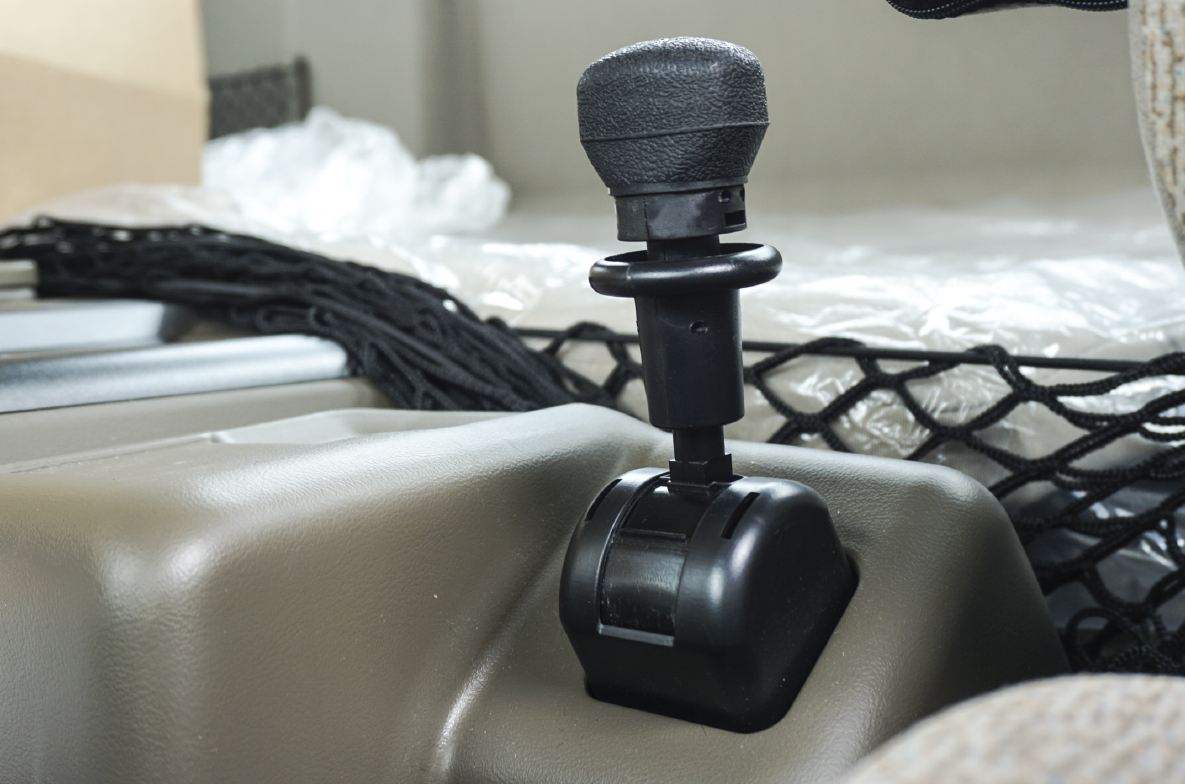

Pneumatic parking brake

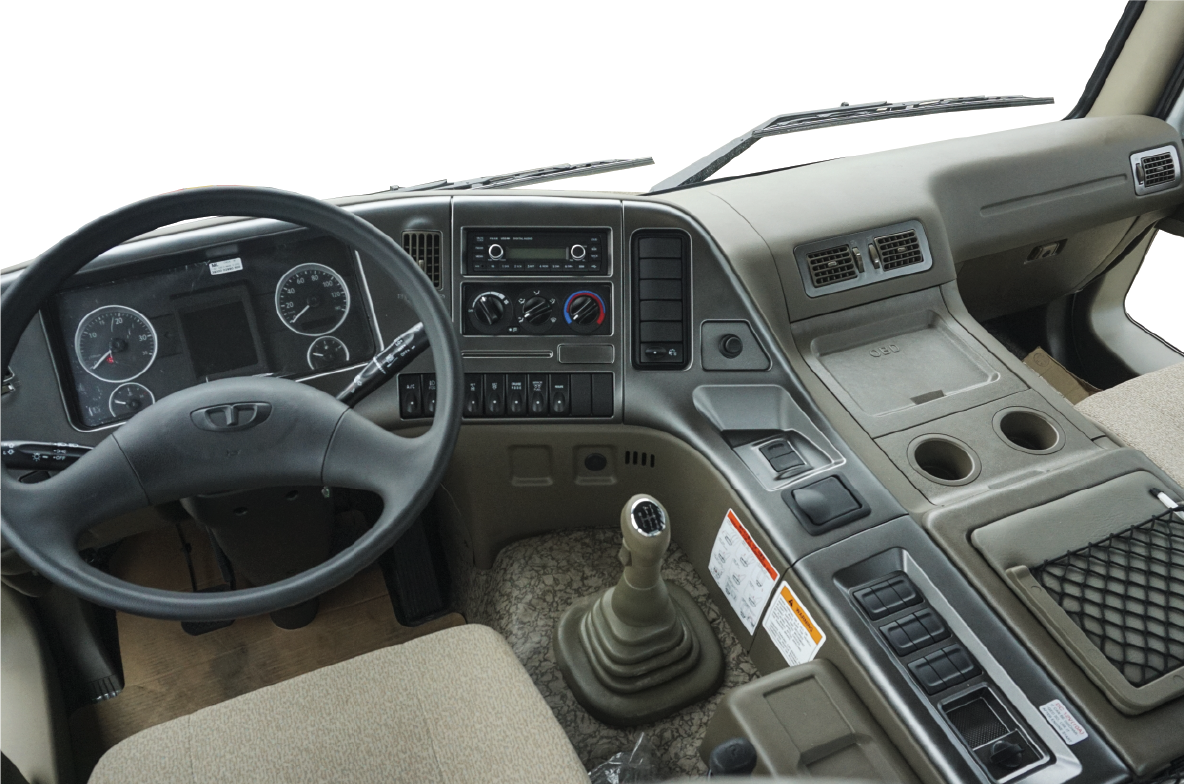

Large cabin
Steam mattress chair
Efficiency

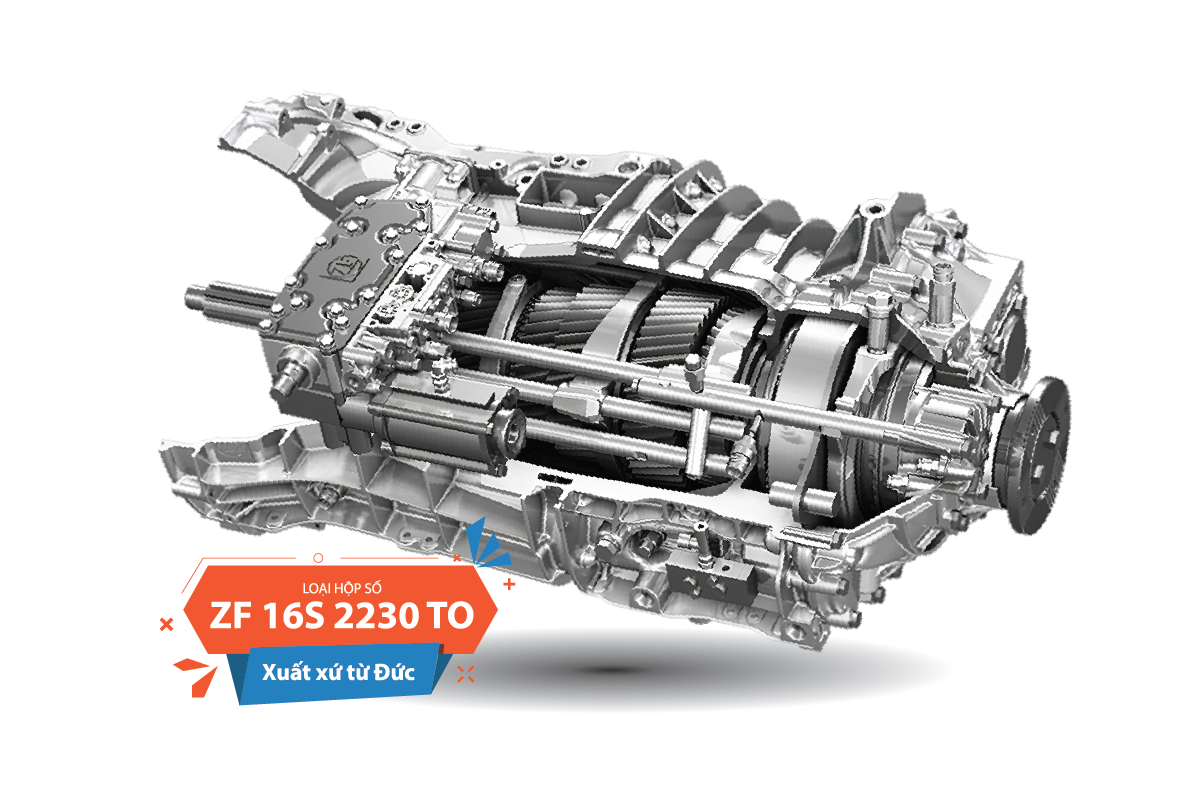

ZF 16S 2230 TO gearbox

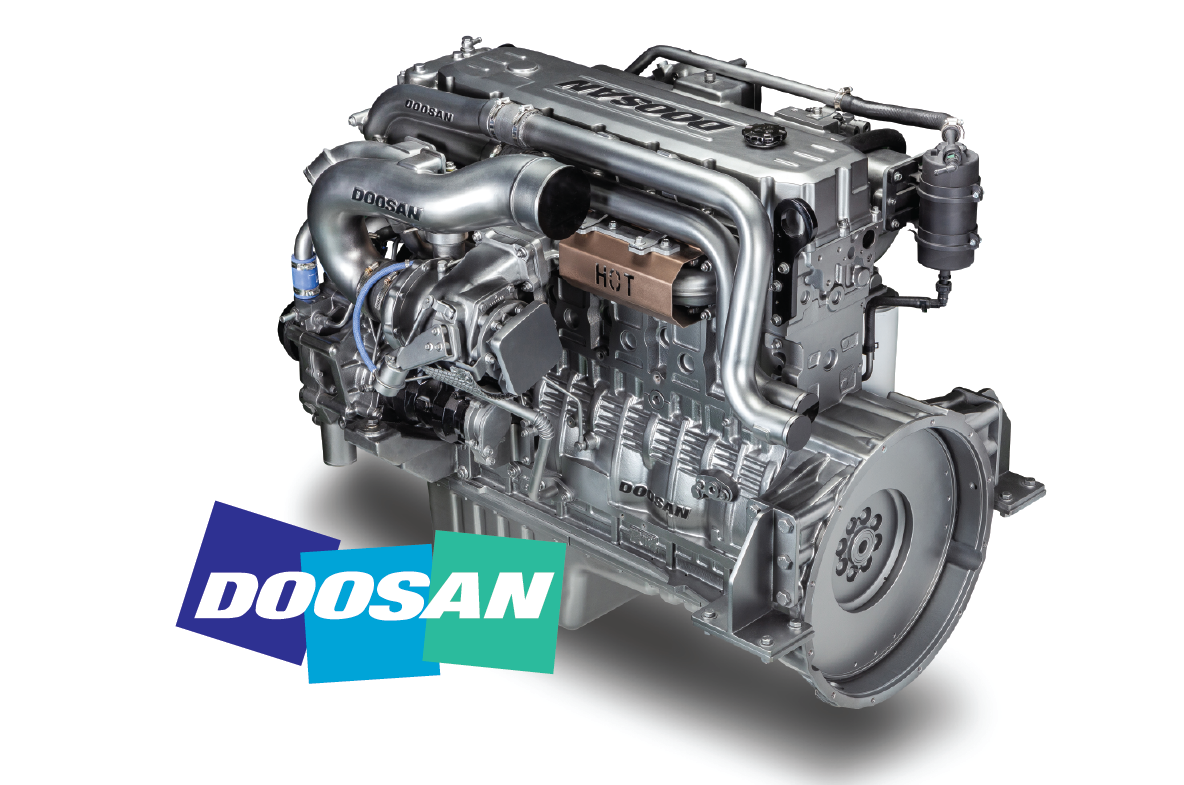

Engine DOOSAN Diesel DX12E, Max power: 440PS/1.900 rpm; Max torque: 2.108N.m/1.200rpm; Displacement: 11.051cc

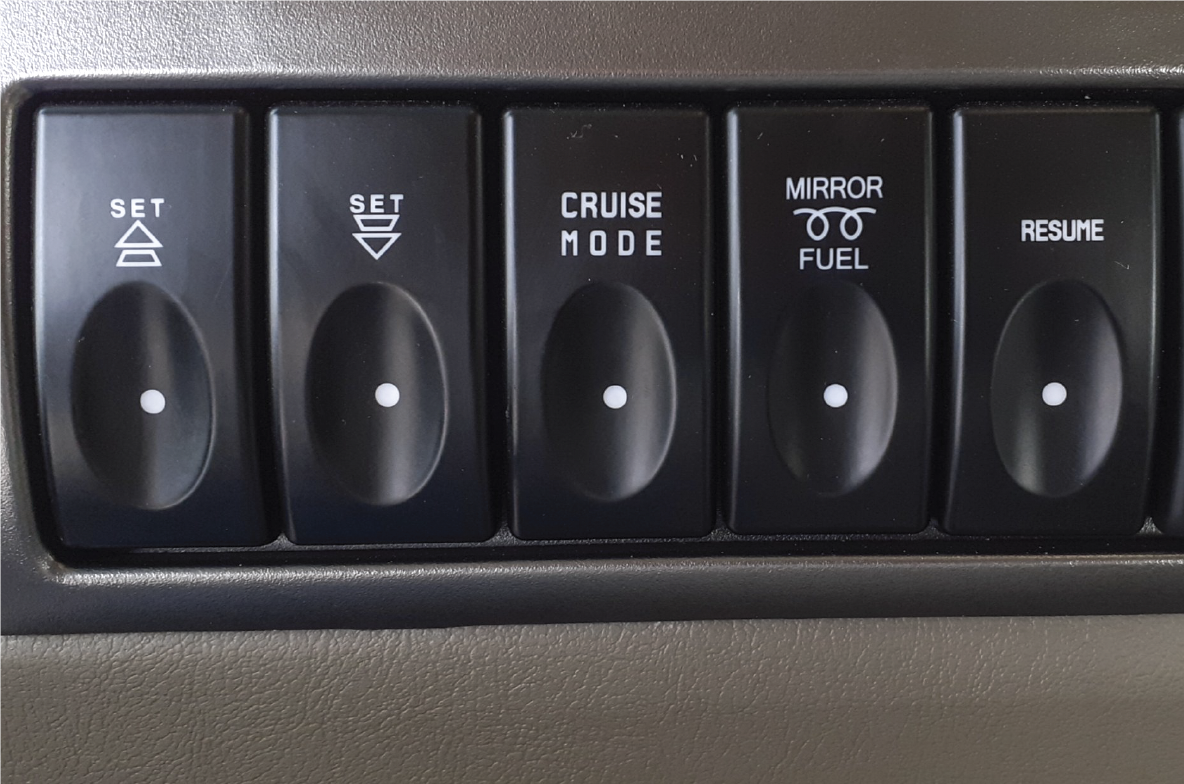

Cruise Control

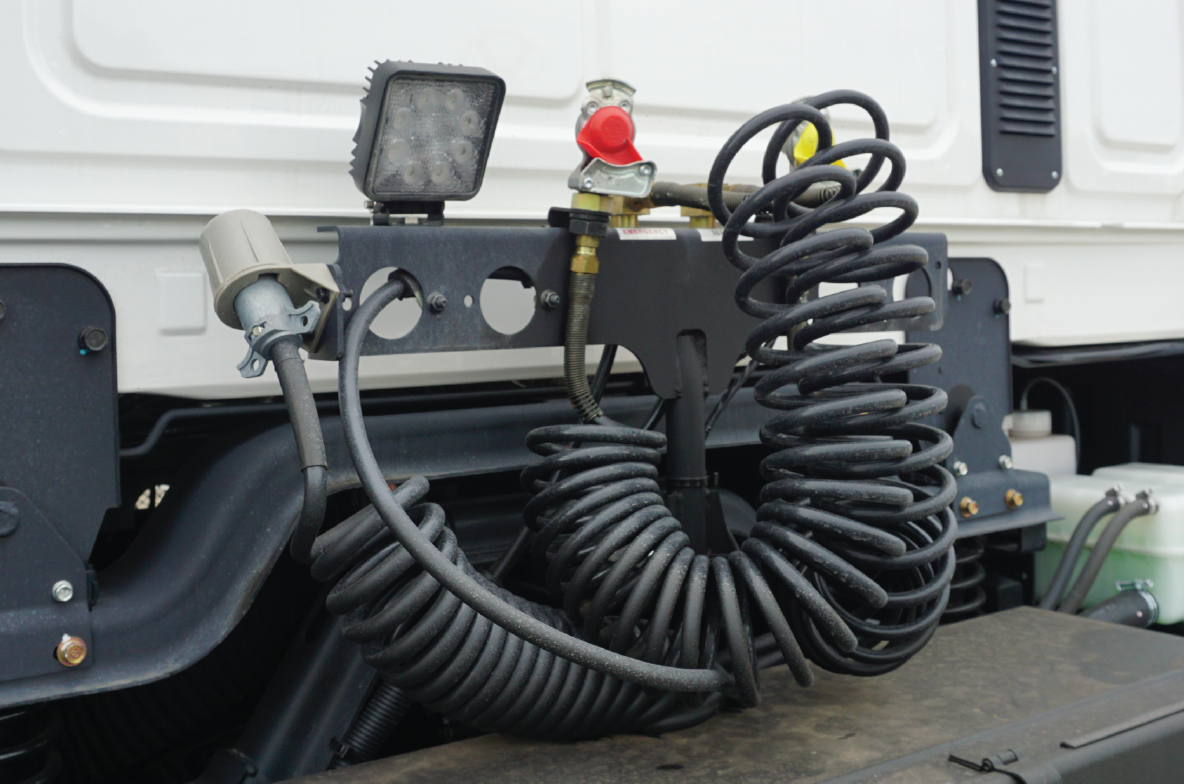

Lights and systems connected to the trailer

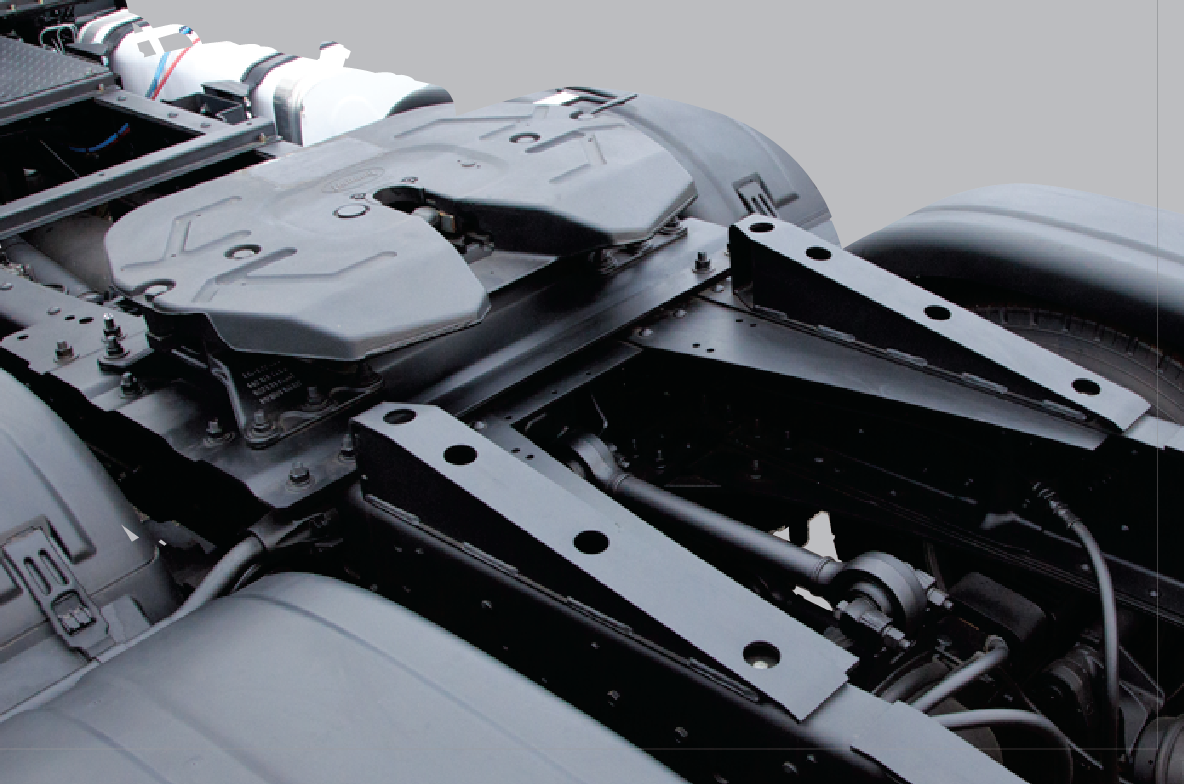

Tractor fifth wheel - Couple Jost or Holland
Technical specifications
| BRAND | DAEWOO |
| MODEL | CL4T8 |
| TYPE | TRACTOR |
| WEIGHT (kg) | |
| Curb Weight | 8.600 |
| Designed/Authorized fifth wheel loading | 20.000/15.000 |
| Max. total mass: Designed/Authorized | 28.730/23.730 |
| Max. towed mass: Designed/Authorized | 61.270/39.000 |
| DIMENSION (mm) | |
| Overall: LxWxH | 7.010 x 2.495 x 3.005 |
| Wheel base | 4.650 |
| Front/Rear axle wheelbase | 2.080/1.850 |
| PERFROMANCE | |
| Max speed (km/h) | 109 |
| Max gradability (%) | 28,8 |
| Smallest rotation radius (m) | 7,2 |
| ENGINE | |
| Model | DX12E |
| Displacement (cc) | 11.051 |
| Max power (PS/rpm) | 440/1.900 |
| Max torque (N.m/rpm) | 2.108/1.200 |
| Emission standards | EURO V |
| TRANSMISSION | |
| Code | ZF 16S2230TO (Made in Germany) |
| Type | Manual F16/R2 |
| AXLE | |
| Front axle load (kg) | 7.100 |
| Rear axle load (kg) | 23.000 |
| BRAKE SYSTEM | |
| Brake | Full air brake, dual circuit |
| Parking Brake | Acting on spring actuator |
| Auxiliary Brake | Exhaust Brake |
| FUEL TANK | |
| Capacity (L) | 400 |
| TIRE | |
| Front/ Rear | 12R22.5-16PR |
| Wheel Formula | 6x4R |
| STEERING SYSTEM | |
| Type | Power assisted by oil |
| SUSPENSION | |
| Front/Rear Suspension | Leaf spring |
| ELECTRICAL SYSTEM | |
| Battery | 12V - 170Ah x 2 |
| Altemator | 24V -100A |
| Starter | 24V - 6,0kW |
